Description
↓ Download Full Technical Datasheet (PDF)

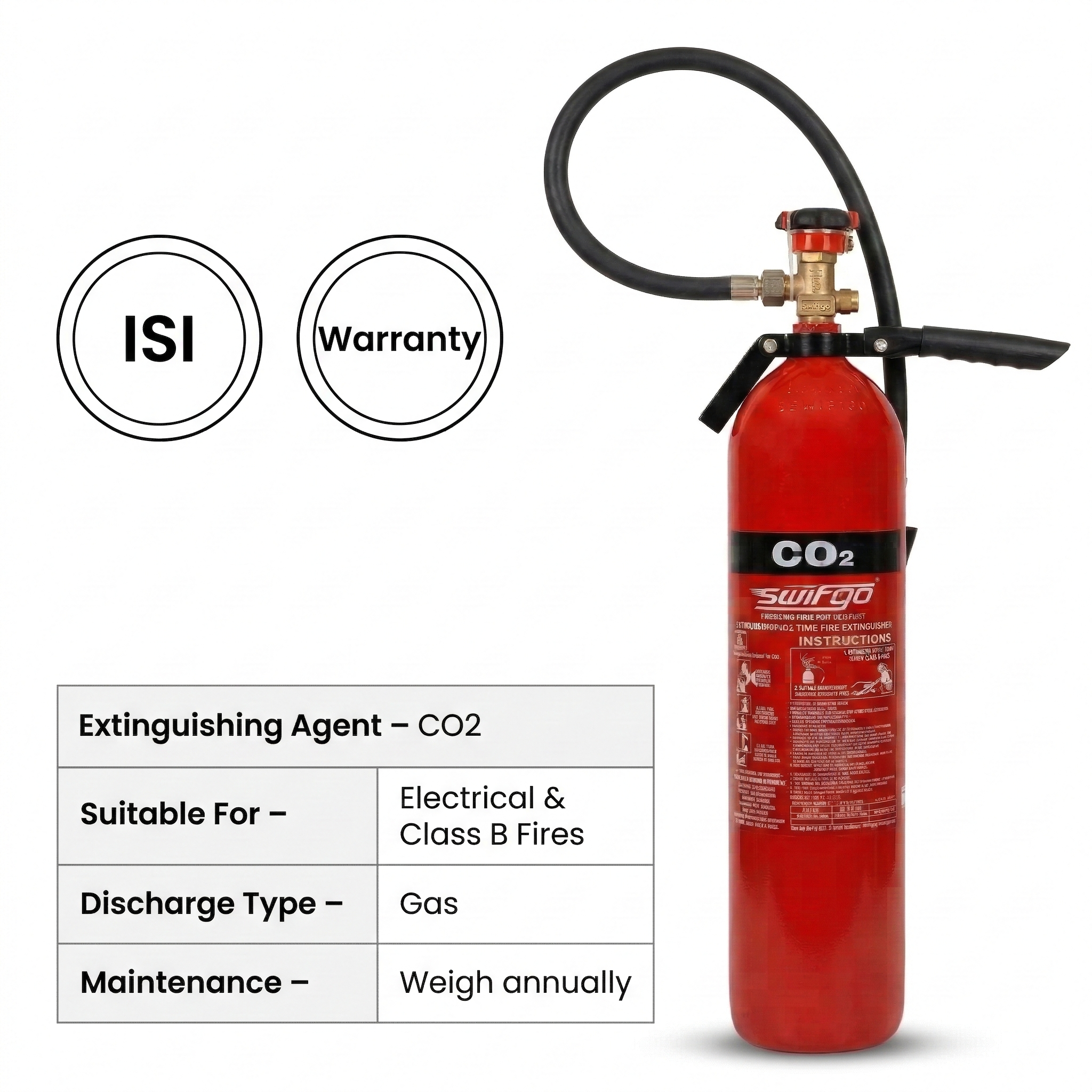

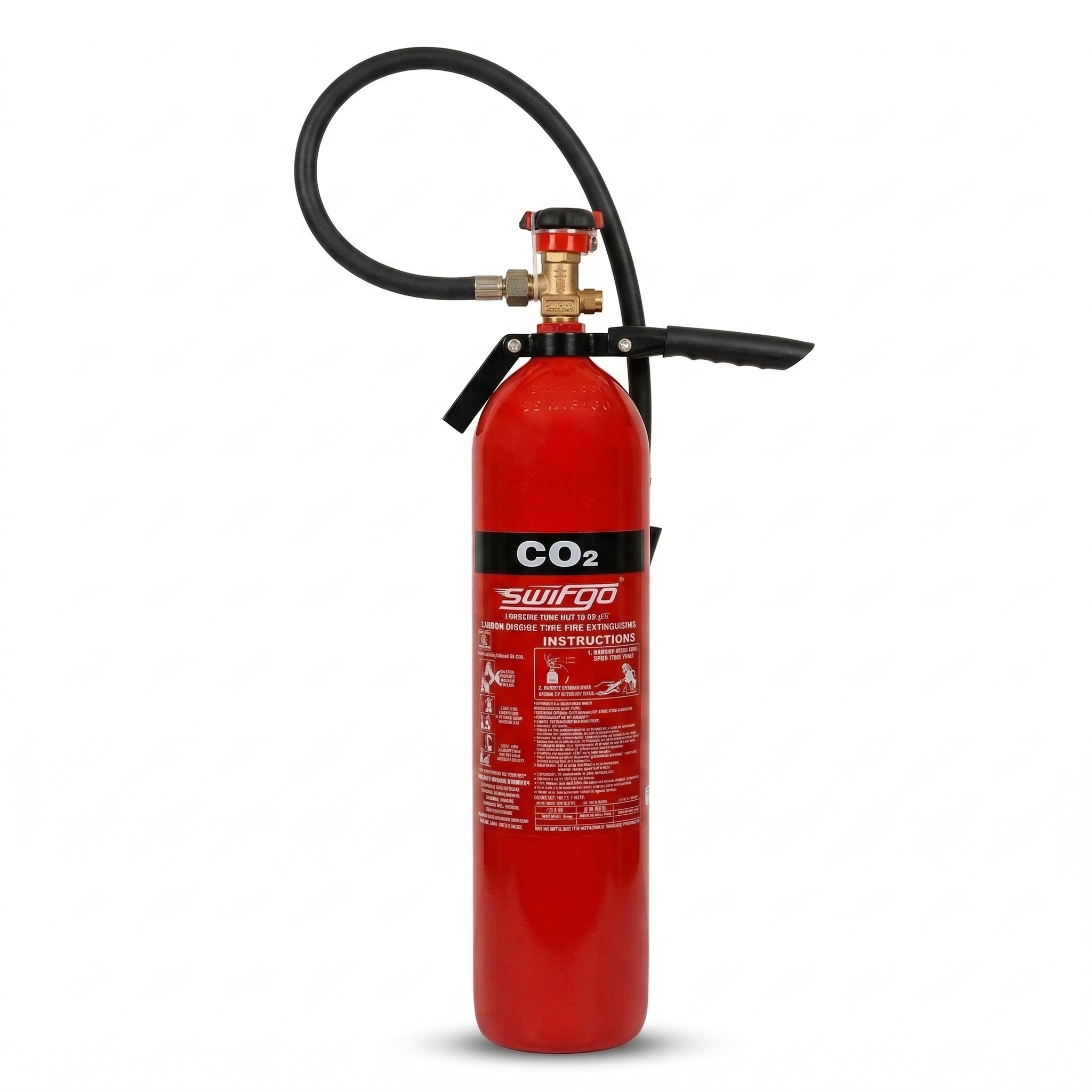

Product Overview
- Brand: Swifgo
- Type: CO2 (Stored Pressure)
- Capacity: 4.5 kg
- Fire Class: B, C (Electrical & Flammable Liquid)
- Fire Rating: 55B
- Compliance: IS 15683:2018 · PESO Approved
Where to Use

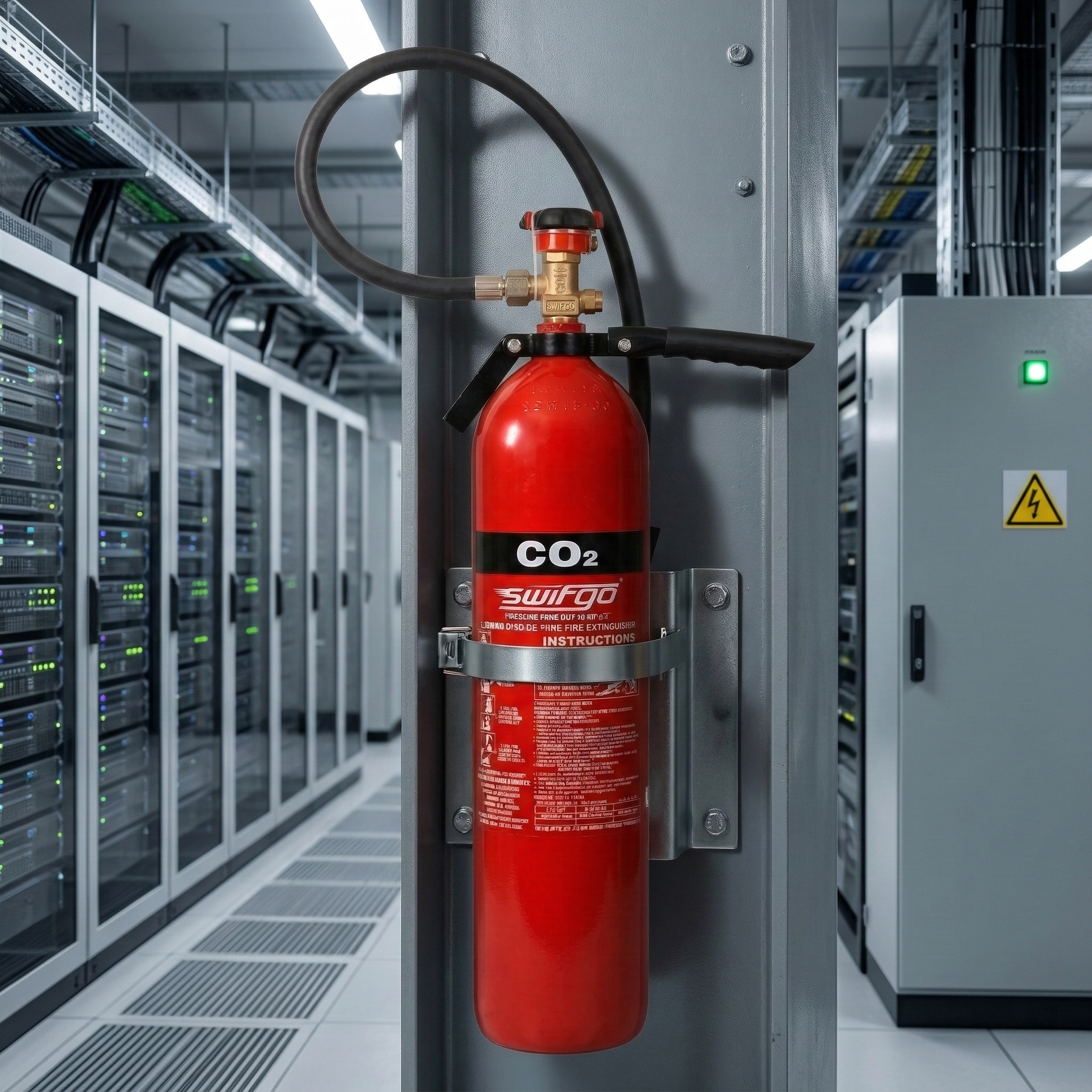

- Server rooms, electrical panels, laboratories, sensitive electronics.
- Zero residue after discharge — safe for equipment.
- Warning: the horn freezes on discharge. Hold only by the handle.
Dimensions & Weight
| Height | 690 ± 10 mm |
| Diameter | 140 ± 5 mm |
| Empty Weight | 12 kg |
| Filled Weight | 16.5 kg |
How To Use — PASS Method
- Pull the safety pin.
- Rotate the valve anti-clockwise to activate.
- Hold the cylinder by the designated handle. Do NOT touch the horn (freezes on discharge).
- Sweep from side to side across the base of the fire.
Certifications
- IS 15683:2018 Certified
- BIS Regulatory Endorsement
- Tested by ISI-approved lab
- PESO Approved
Warranty: 5-year warranty on cylinder integrity and valve function under normal use. Refilling every 5 years recommended.
